Ocular DC Titan 60kW

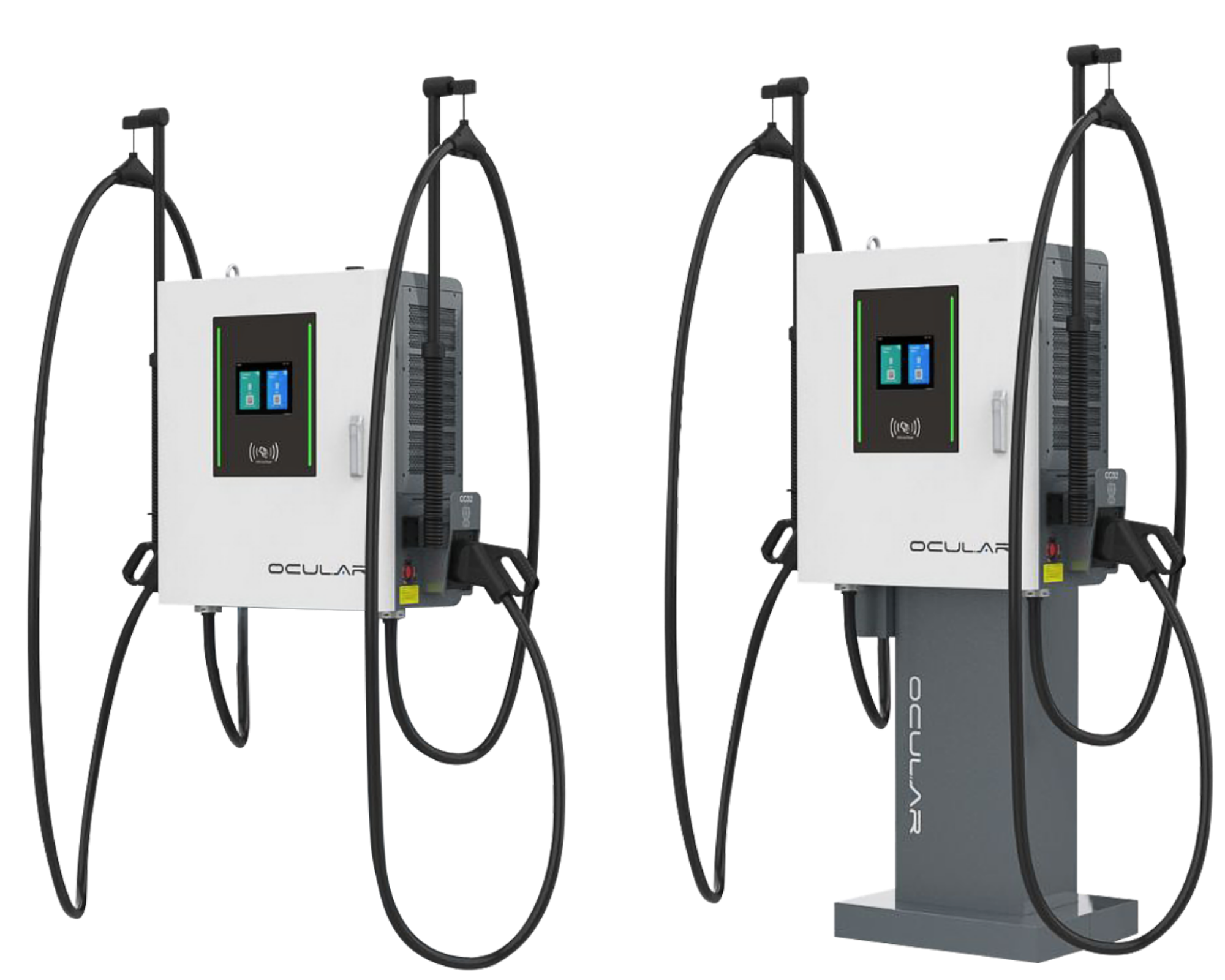

Wall or Floor Mounted

Both the 30kW and 60kW models provide fast charging within a class leading compact casing made by experts in EV charging. Why settle for anything less.

Our Titan charger is the most powerful wall mounted fast charger. With the modularity of a stand, operators can choose exactly how and where they charge their EV’s. With dual charging you can take advantage of reductions in hardware costs and improvements in infrastructure utilisation.

All the Ocular Titan range supports OCPP 1.6 & 2.0 compatible for smart charging, billing and secure identification. The 8″ LCD touch screen displays user guidance and charging statistics. The Titan range is the global leader in reliability and safety.

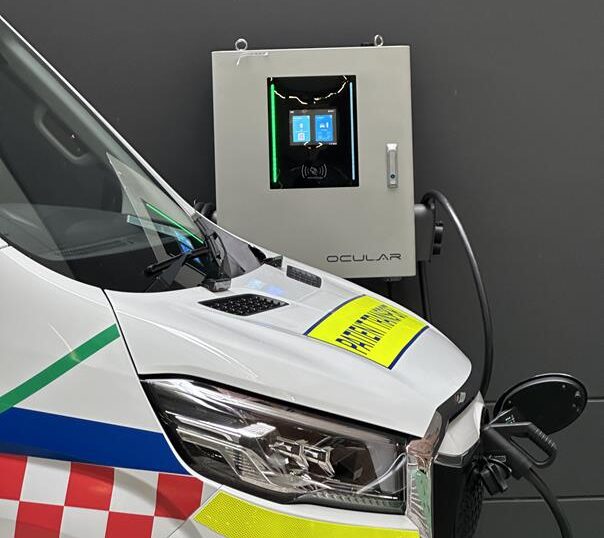

St Vincent Ambulance 60kw (3) (copy)

Designed to be Simple

The Ocular Titan 30kW/60kW are suited to withstand a wide range of New Zealand weather conditions, from extreme cold to scorching heat. The LCD screen provides live feedback to give your customers maximum control.

  • RCD inbuilt
  • 4G modem inbuilt
  • 8″ LCD touchscreen display
  • Metallic Frame
  • RFID compatible
  • MID metering
  • OCPP 1.6J, 2.0
  • Wall and Floor Mounted Options

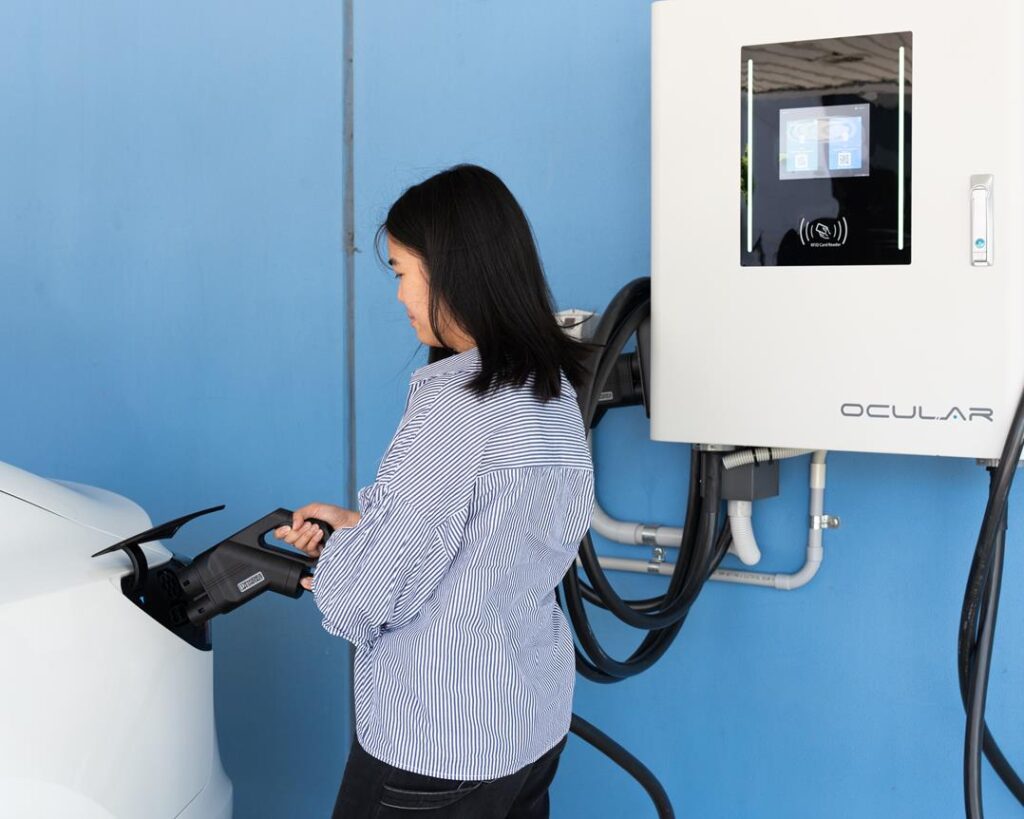

Titan Lifestyle Images (1) (copy)

The charger your EV deserves

002
Smart Charge any EV in New Zealand

Perfect for public spaces, these DC chargers are an upgrade from the standard AC charger getting EVs back on the road faster.

004
Live Monitoring

Manage, analyse, and bill for charging all from an easy-to-use online platform. With full OCPP access, any networking software can be used with Ocular Titan.

003
Instant Feedback with a 8″ LCD Display

For unrivalled accessibility and simplicity for anyone who uses the charger, the 8″ display will guide the users with all  information to charge right.

Specifications

Technical Specifications

Get to know the Ocular DC Titan Charger inside out.

General Specifications

Output Range 60kW (360 km additional range per hour), 2x Tethered 7m Type 2 Cable
Connection 2x Tethered 7m Type 2 Cable
Load Management Inbuilt static load management and optional active load management
Protection Degree IP54
Operating Temperature -40℃ to +75℃
Dimensions 770 x 690 x 355mm
Weight 85kg (without stand)
