Ocular DC Atlas 60-120kW

DC Charging built to scale with you

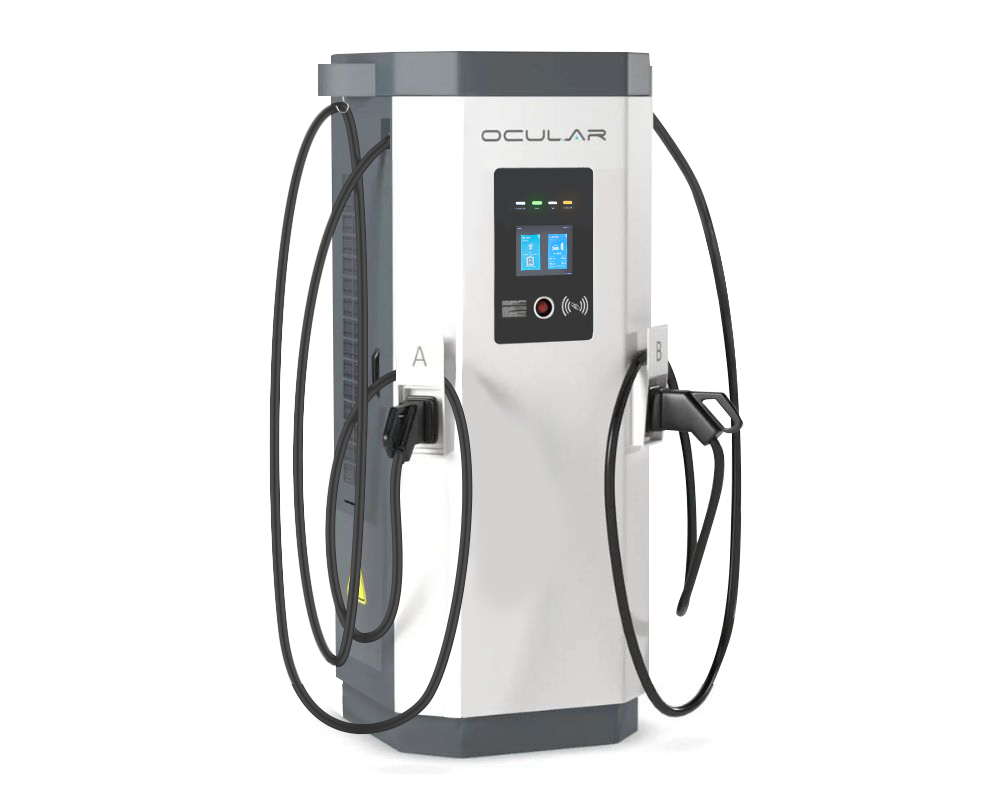

The Atlas was developed to be a flexible DC Charging solution. Available in 60kW, 90kW and 120kW, this advanced charging system provides the ultimate customer experience so EV drivers can spend less time charging and get back on the road sooner. With two tethered 5m type 2 cables, this floor mounted system combines speed and function to simultaneously charge two EVs. Most EV models will be charged in under half an hour.

Available with an a credit card module add on. Contact us for more details.
Atlas 60 180kw 2

Fast, simple and reliable.

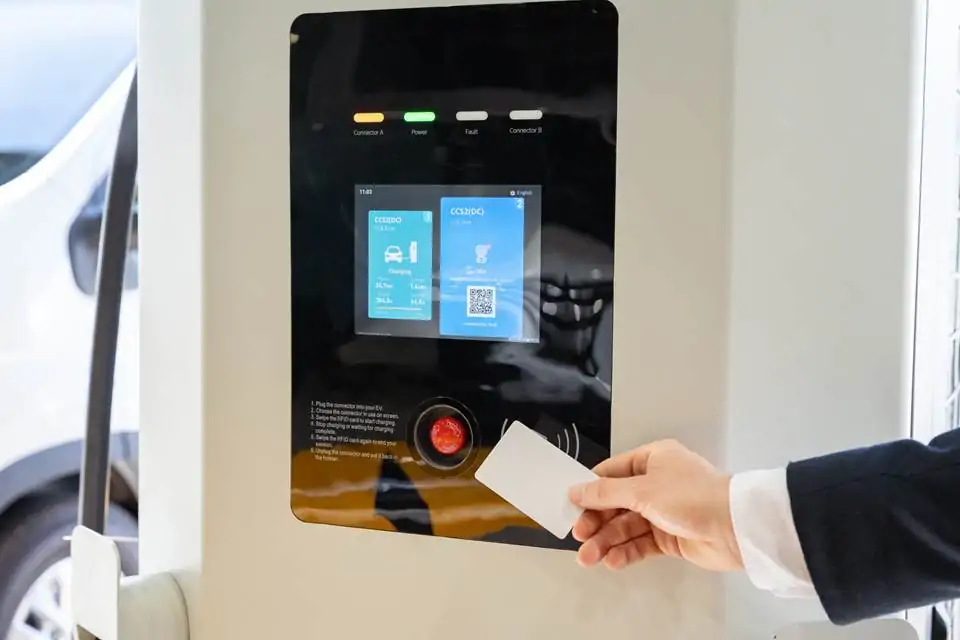

The Ocular Atlas, design by industry experts, is suited to withstand a wide range of New Zealand weather conditions, from extreme cold to scorching heat. The LCD screen provides live feedback to give your customers maximum control.

  • RCD inbuilt
  • 4G modem inbuilt
  • 8 inch LCD touchscreen display
  • Metallic Frame
  • RFID compatible
  • MID metering
  • OCPP 1.6J, 2.0 (fleet and billing software)
Technical Specs
DC Atlas Charger

Reliable EV Charging Made Simple
002
Perfect for the Public

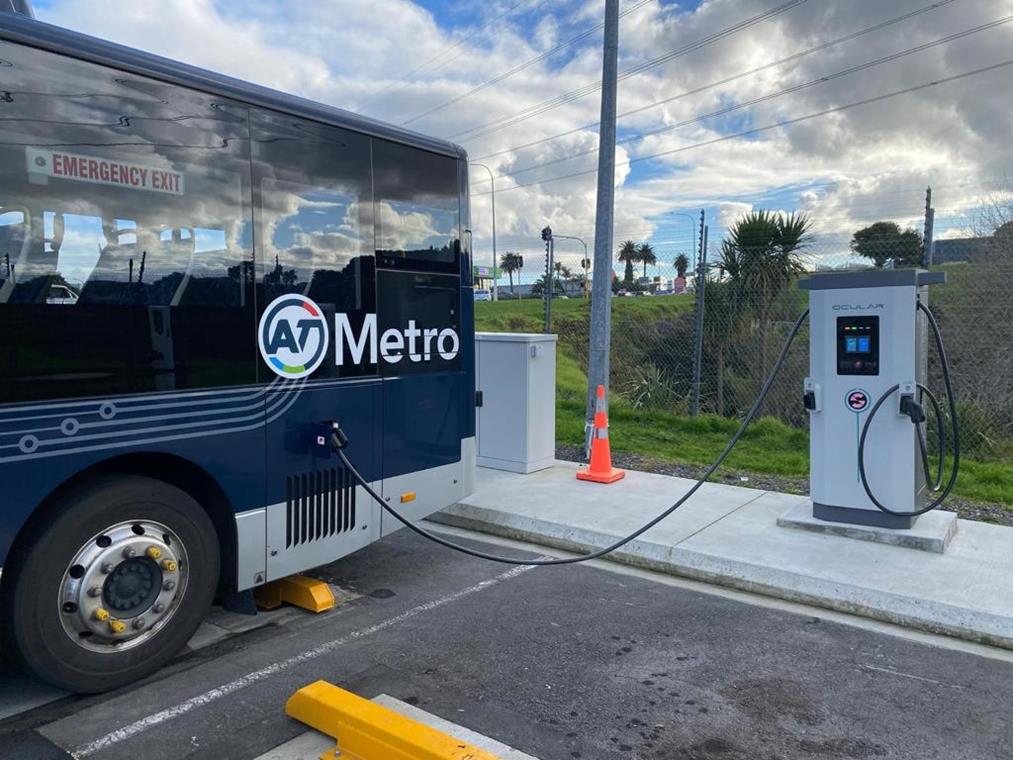

Perfect for public spaces, this DC charger allows faster charging with less infrastructure. Up to 120kW of power getting EV users fully charged sooner.
004
Live Monitoring

Manage, analyse, and bill for charging all from an easy-to-use online platform. With full OCPP access, any networking software can be used with Ocular Atlas.
003
Ocular Expertise

The Ocular Atlas Model delivers uncompromised speed with class leading compact casing to survive New Zealand weather conditions. Be confident in our expert design and advice on your next public or commercial charging installation.

Specifications

Technical Specifications

Get to know the Ocular Atlas 60-120kW Charger inside out.

General Specifications

Output Range 60kW, 90kW, 120kW
Connection 7m Straight Cable as standard, other cable lengths available on request
Certifications CE, IEC/EN 61851-1, IEC/EN 61851-23, IEC/EN 61851-21-2, RCM
Protection Degree IP55
Operating Temperature -30°C to +55°C
Dimensions 1815 x 1007 x 868 mm
Weight 250kg – 310kG, dependent on model

Downloads

Download Icon
Download Datasheet
pdf File

DC Chargers

For our AC range, only our IQ range is software compatible. For our DC range, all chargers are supported with OCPP.

AC charging utilises the on-board AC to DC power converter that is connected to your EV battery to charge your car. AC EV chargers require an adapter connection to a distribution board in order to charge your car

  • Available in single-phase and 3-phase charging
  • More cost-effective solutions

DC Charging performs AC to DC power conversion outside of the EV.

  • Units are much larger due to housing a much larger AC-DC power converter than the converter in your car
  • Greater charging range and capacity (20kWh-150kWh)
  • Charging times are much faster than AC charging
  • DC Charging leads connect directly to your battery
